Mag Drive Pumps

The patented sealless magnetic drive design provides zero leakage for the most critical applications.

Mag Drive series are the first progressing cavity wobble stator pumps to offer magnetic drives. The proprietary, magnetic coupling design performs well in hazardous applications and is effective with difficult-to-seal fluids. This ensures operator safety and protects the environment from contamination.

Features

  • Patented, sealless technology provides zero leakage, preserving expensive fluids, eliminating hazardous work place conditions and protecting the environment
  • No mechanical seals are used, eliminating costly repairs
  • Pulsation-free, low shear pumping action maintains product integrity
  • No vapor locking when handling gaseous, volatile liquids
  • Four models from which to choose for application versatility
  • Various motor options available
  • Materials of construction include PVC housings
  • Stator materials include FPM with optional Nitrile and EPDM; Titanium rotors are standard
  • Skid mounted, turnkey systems are available for one-stop, hassle-free shopping, saving time and money

Typical Applications

  • Sodium Hypochlorite
  • Ammonia
  • Hydrogen Peroxide
  • Ferric Chloride
  • Aluminum Chloride
  • Ammonium Chloride
  • Calcium Chloride
  • Nickel Chloride

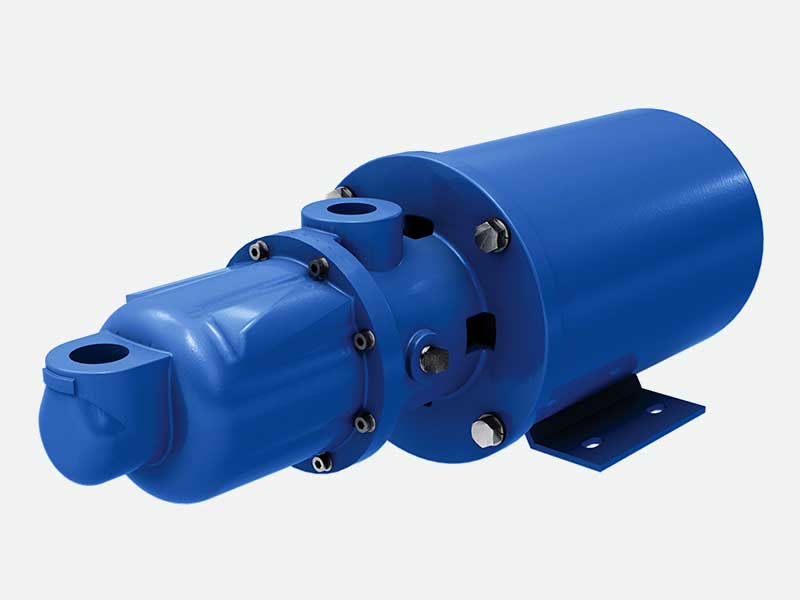

General Utility Pumps

Provides an economic answer to many pumping duties.

Designed for use where low flow or transfer duties in both domestic and industrial applications are required, these self-priming pumps can achieve suction lifts up to 26 feet. Simple design and construction provide extended pump life with minimal routine maintenance.

Features

  • Progressing cavity pump principle ensures steady output pressure and non-pulsing flow with minimal slippage–a very useful feature when pumping heating oil to burner nozzles for example
  • Smooth action and resilient rubber stator ensures quiet running–ideal for light industrial and domestic installations
  • Simple design and easy dismantle
  • An abrasion and chemical resistant stator for handling viscous liquids and random solids
  • Available as cast iron, stainless steel or engineered co-polymer bodies
  • High quality stainless steel rotating parts
  • Available either bareshaft or coupled with a motor

Typical Applications

  • Dosing applications
  • Light creams
  • Shampoo
  • Cosmetics
  • Diesel/fuel oils
  • Water sampling
  • Hydraulic/lubricating oils
  • Cellar drainage
  • Septic tank/cesspit emptying
  • Garden sprinkler systems
  • Water supply from wells or rivers

Compact C Pumps

Sealed pin joint design for a variety of applications.

Compact C Pump delivers reliable performance to the maximum duty requirements of your application in a compact package. Features include suction lift capability up to 28 feet, positive displacement for process control, and variable speed for accurate dosing.

Product brochures

Features

  • Available in cast iron or stainless steel, with a choice of rotor and stator materials
  • High pressure / long haul pumping, eliminating the need for a series of pumps when pumping over long distances or with high head requirements
  • Available in standard geometry or extended pitch
  • Gentle pumping action minimizes shear and crush damage
  • Inspection cover available for applications where rag content is a problem
  • The pump can be supplied with a square inlet and conveyor to assist viscous slurries into the pumping element
  • Low running speeds – ideal for abrasive applications

Typical Applications

  • Domestic and industrial effluents
  • Sludge
  • Milk curds, sauces, fruit juices
  • Industrial chemicals
  • Detergents
  • Coating clays
  • Gypsum and silicate
  • Paper stocks
  • Agriculture slurries
  • Hydrated lime slurry
  • Starch slurries

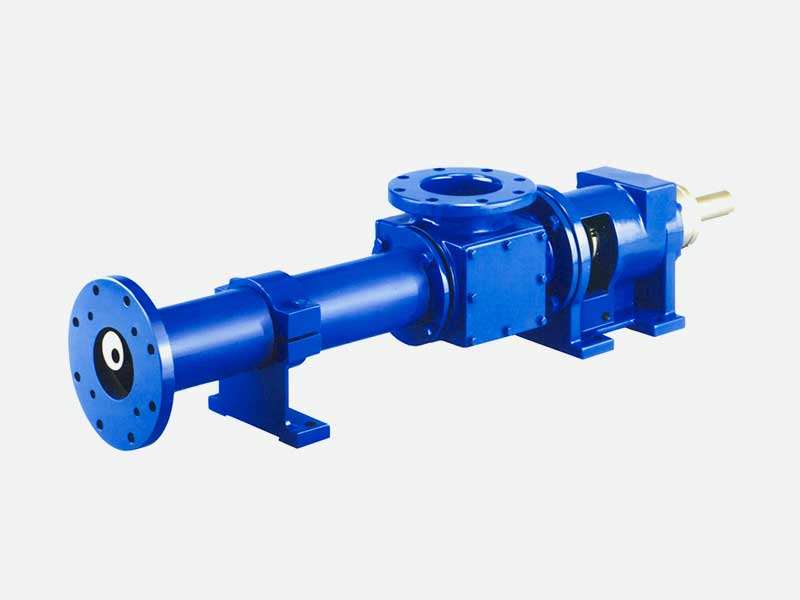

2000 Pumps

2000 pumps set the standard in positive displacement pumping applications. The proprietary 2000 gear-type universal joint design effectively handles radial and thrust loads for maximum performance and long life.

These rugged pumps are able to handle abrasive materials in excess of 80% solids and offer a performance range to 4,500 GPM with pressure to 1,500 PSI.

2000 HS System

Highest pump efficiency to provide unmatched performance in high solids transfer.

L-Frame Pumps

Reliable and proven pin joint design for a variety of applications.

Epsilon/Vertical

High engineered progressing cavity pumps designed to withstand viscous, abrasive, or corrosive applications. Optional vertical mount.

EZstrip Transfer Pumps

For the newest iteration of our EZstrip™ maintain-in-place progressing cavity pump we designed new features to make maintenance even more user friendly than before. In addition to our patented split suction chamber we’ve removed the tie bars, designed a new positive torque split coupling rod, and added in a captive support foot. That means faster, easier maintenance for you. The EZstrip has been specifically designed to provide a quick and easy way to disassemble, de-rag and maintain a PC pump in-situ, eliminating the costly maintenance and down time that servicing can often cause.

Product brochure

Features

  • Patented split coupling allows full removal of the drive train in minutes with no electrical disconnection required
  • Pre-assembled drive train available with 2-year warranty to allow faster reassembly time
  • Suction and discharge ports remain connected to the pipe work
  • Operational parameters are unaffected since design has no effect on flow and pressure
  • Low running speeds reduces wear for a longer working pump life; ideal for abrasive applications
  • Stainless steel cast components and fasteners provide corrosion resistance making them suitable for a variety of applications

Typical Applications

  • Domestic and industrial effluent
  • Hydrated lime slurry
  • Sludge
  • Shear sensitive latex emulsion
  • Milk curds, sauces, fruit juices
  • Industrial chemicals and detergents
  • Starch slurries
  • Coating clays, gypsum and silicate
  • Paper stocks
  • Agricultural slurries

EZstrip Cake Pumps

Specially designed detachable feed chamber for high solids pumps.

The EZstrip™ Cake Pump features a specially designed feed chamber that can easily be disconnected allowing access to the rotating assembly. The rotor can be separated from the conveyor allowing removal of the rotor and stator all within its own assembled length. This process can take as little as 6 minutes!

Product brochure

Features

  • Quick and easy to maintain-in-place
  • Reduced maintenance downtime and labor savings
  • No need to disconnect suction and discharge pipework, even when removing the screw conveyor
  • Detachable feed chamber supplied as standard
  • Side inlet port allows addition of thin sludge for blending and can also be used for draining the pump
  • Large auger design as standard – ribbon auger available to assist blending/conveying of product into the pump
  • Option of a separate bridge breaker mounted directly on top of the hopper to ensure optimum filling of the auger feed screw

Typical Applications

  • Heavy clay slurries
  • Gypsum
  • Grout
  • Grape must
  • Municipal GBT sludge
  • Thick industrial sludge
  • Sludge cake up to 40% dry solids
  • Content
  • Sludge blending, including lime
  • Powder dosing and lime slurry
  • Dosing in conjunction with barrier layer injection

Moyno 500 Sanitary Pumps

500 Sanitary Pumps offer low flows and high performance in a compact, cost-effective size. Made of food-grade 316 stainless steel to meet 3A sanitary standards, this versatile pump also features elastomers that satisfy FDA requirements.

Performance Features

  • Positive Displacement
  • Self-priming
  • Temperature range to 240º F
  • Pressures to 150 psi; capacities from .2 to 15 gpm

Product brochure

Features

  • Accurate, repeatable, non-pulsating flow for shear-sensitive applications
  • Application versatility, from clean, clear liquids, additives and flavorings to viscous and abrasive fluids
  • Design simplicity and premium components for reduced maintenance and replacement
  • Quick disassembly clamp for easy cleaning
  • Sanitary and cost-saving Hygienic models available
  • Bare Shaft and Close-Coupled models available

Typical Applications

  • Food Additives/Flavorings
  • Filling machines
  • Food dispensing
  • Dairy products
  • Cart-mounted transfer
  • Pharmaceuticals/Cosmetics

Moyno Sanitary Pumps

Low-shear, non-pulsating Sanitary Pumps transfer shear-sensitive materials with a minimum of turbulence or stress.

Performance Features

  • Minimal product degradation in shear-sensitive applications
  • Long service life in abrasive slurries and corrosive fluids
  • Temperatures to 350° F, viscosities to 1,000,000 cps
  • Handle suspended solids to 1.1″ diameter
  • Pressures to 225 psi; capacities from .02 to 345 gpm

Product brochure

Features

  • Mechanical seals standard
  • Standard models meet 3A and BISSC sanitary requirements with no modifications
  • Close-coupled and open throat models

Typical Applications

  • Bread dough & bakery products
  • Sauces, juices & jellies
  • Meat & dairy products
  • Wine
  • Yogurt
  • Chemical feed

Moyno Hygienic Pumps

Progressive cavity pumps provide the most gentle pumping action on the market for solids handling, offering minimal product degradation in shear-sensitive applications like salad dressings and salsas while being able to move suspended solids with minimal damage to products like diced fruits, vegetables, and soups. The robust nature of the pump also allows it to handle varying viscosities with ease, including viscous slurries (even over 1,000,000 cps) like peanut butter, candies, and jam. The positive displacement action of the pump allows for variable speed control for efficient, slow-speed pumping and process control for accurate dosing.

Features and Benefits

  • 3-A certification.
  • Quick disassembly design for easy cleaning.
  • Non-pulsating, metered flow—ideal for batching processes.
  • No valves to clog, stick, or vapor lock.
  • Transfer solids up to 1 in. (25 mm) in diameter.
  • Easy, on-site maintenance.
  • Cost-effectively handle thin liquids like soups and juices.
  • Handle corrosive applications like citric acid and vinegar.
  • Provide long service life in abrasive applications like soybean slurries.
  • Consistently handle entrained air and gases in applications like yeast and nougat.

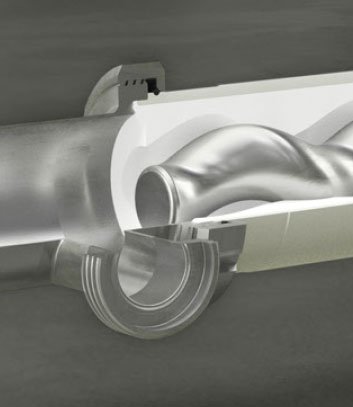

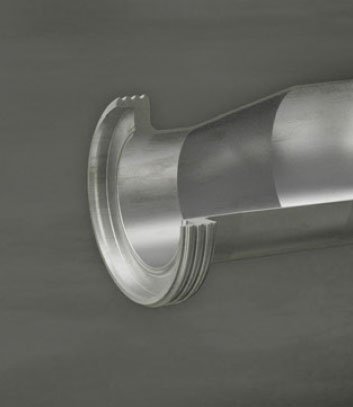

DIN 11851, DIN 11864/53-1 fittings, SMS, and Tri-Clamp hygienic connections are available on all sizes and are eccentric to ensure self-draining.

Abrasion-resistant, FDA, and CE1935-2004 compliant elastomers for all stators.

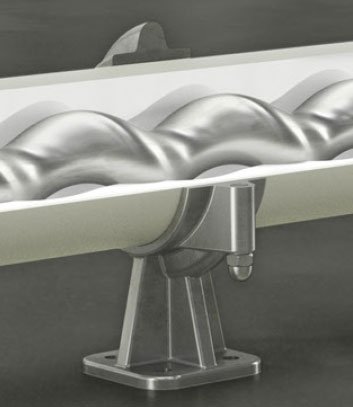

Mounted and locked in place by a stainless-steel foot.

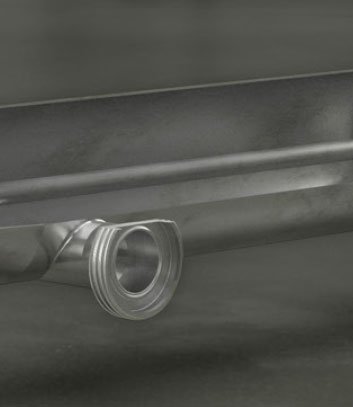

CIP ports can be added to any pump and positioned to suit your process.

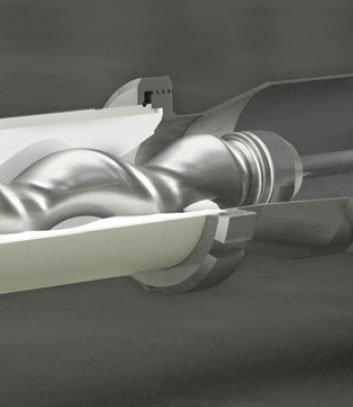

Proven flexishaft technology made from titanium to keep footprint to a minimum.

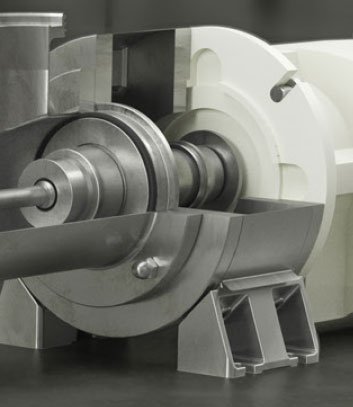

The mechanical seal is located under the inlet and suction area for optimized cleaning.

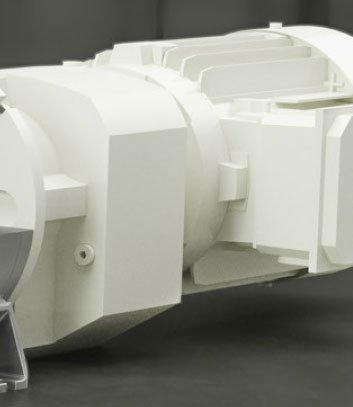

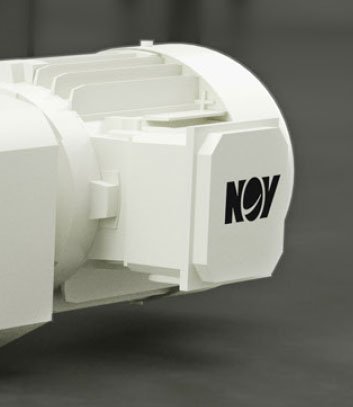

The pump is mounted from the geared motor with superior paint for protection from spray down and available with covers if required.

Various drive options are available and 316 stainless-steel drive covers can be provided.

Tiebar-free design to aid with strip down and maintenance.

Product brochure
